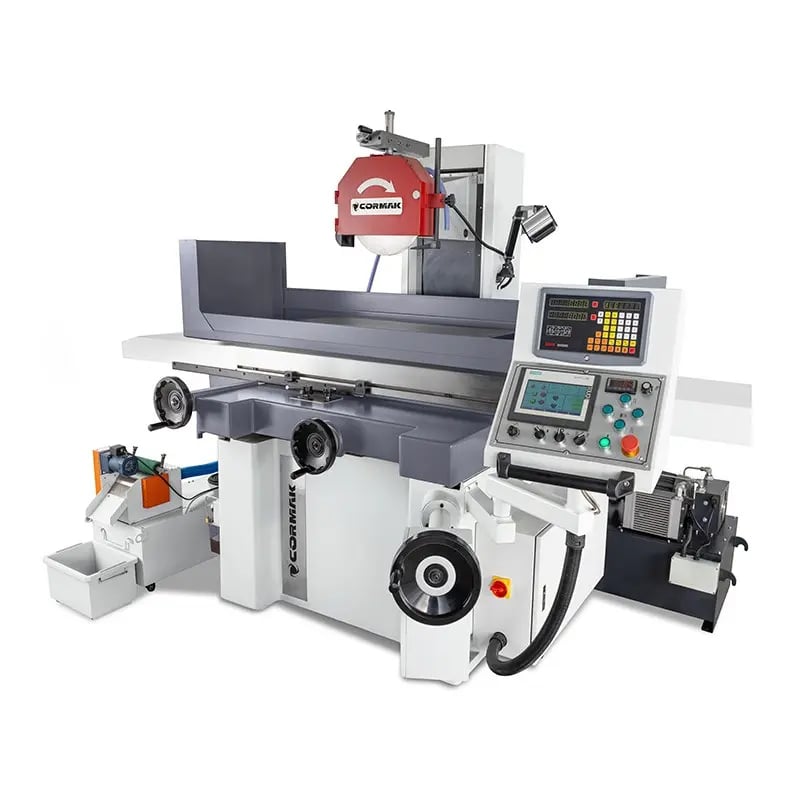

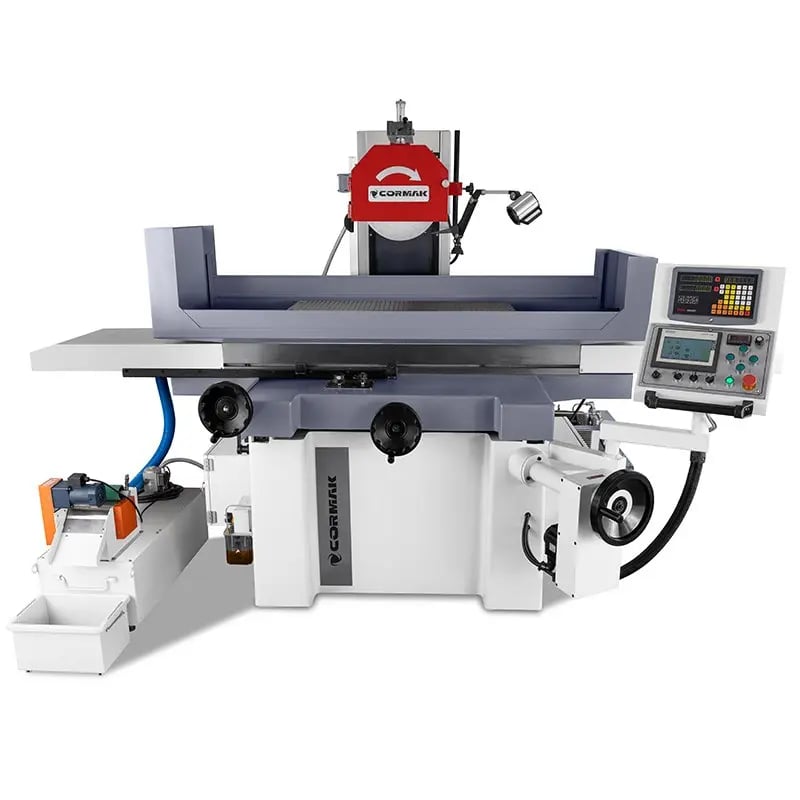

Grinding machine for continuous operation in production. Broad grinding range and programmable PLC SIEMENS controller. The machine has a modern, sturdy design. Its headstock operates on two pairs of guides. Automatic feeds for 3 axes. By default comes with a digital display.
Myndband
Myndband
Machine features
Automatic feeds for 3 axes
Digital display
Sturdy structure
Very high accuracy
Technical data
Magnetic table size
400×800
Table load capacity
500 kg
Grinding wheel dimensions
350×40×127 mm
Maximum distance from spindle axis to table
580 mm
Table hydraulic travel speed
7–23 m/min
Maximum longitudinal table travel
910 mm
Maximum transverse table travel
450 mm
Automatic transverse feed
0.1–8 mm
Rapid transverse feed
990 mm/min
Y-axis scale gradation
0.02 mm
Z-axis scale gradation
0.005 mm
Rapid vertical feed
460 mm/min
Automatic vertical feed
0.005–0.05 mm
Spindle motor power
5.5 kW
Total motors power
9 kW
Base dimensions
3600×2400 mm
Machine height
1900 mm
Weight
3800 kg
Equipment dependent on the model
Digital display
400×800 magnetic table
Grinding wheel
Arbor for wheel balancing
Grinding wheel fixture
Cooling system
Grinding wheel dresser
Chips divider
Halogen lighting installation
